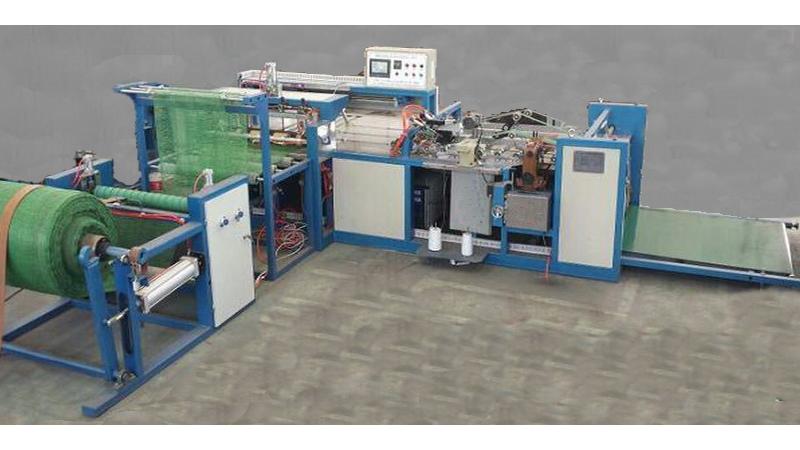

Leno Mesh Bag Auto. Cutting and Sewing Machine
Application:
To automatically cut and sew PP/HDPE tubular leno mesh fabric into leno mesh bag for packaging vegetable, potato, onion, fruits, etc.
Advantages:
● Better and stable cutting and sewing quality.
● Suitable for various kinds of plastic leno mesh fabric, normal PP/HDPE woven fabric is suitable as well.
● High efficiency
● Low maintenance cost
● Operator friendly
● Best economic benefit
Composition of the Machine
|
Standard items
01) Unwinding unit |
Optional items
01) Label sheet auto. supplying device |
Technical Data
|
Model |
WQF-800 |
|
Width of woven fabric |
300 - 800mm |
|
Cutting length |
450 - 1300mm |
|
Cutting accuracy |
±4mm |
| Hemming width of bottom (single hemming) |
20 - 30mm |
|
Stitch style |
Double thread, chain |
|
Length of stitch |
7 - 12mm |
|
Production speed * |
20 - 36pcs/min |
| Max. dia. of unwinding | 1200mm |
|
Power supply |
380V / 3P / 50Hz / A.C. |
|
Installed power |
5.75kw |
| Overall dimension (L×W×H) | 5210×3920×1500mm |
Remark:
* The data depends on processing specification and the physical property of material.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
